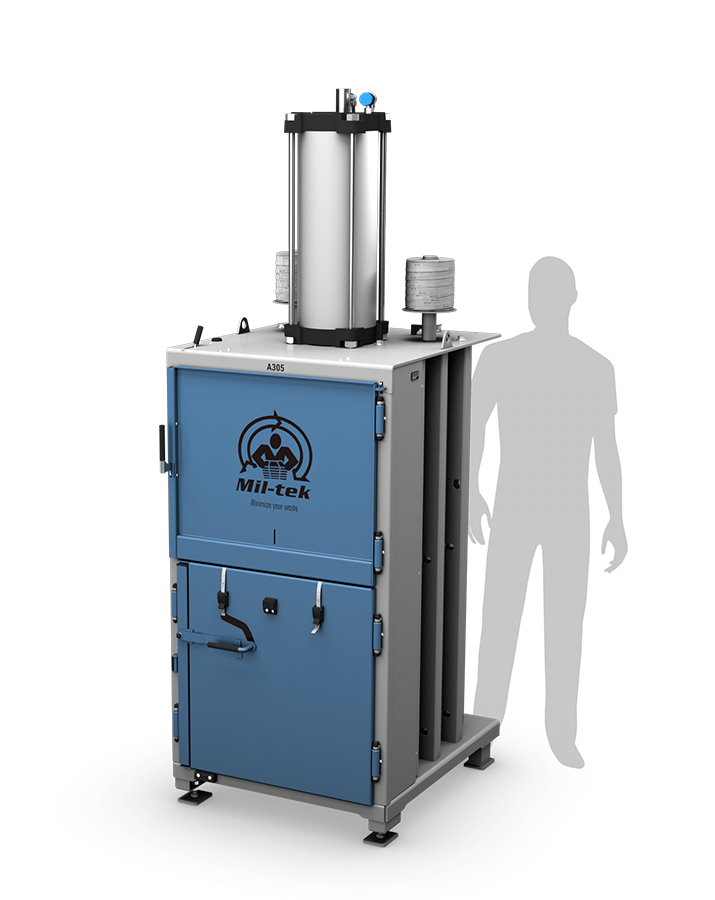

A305 Cardboard & Plastic Baler

A305 Cardboard & Plastic Baler

Strong pneumatic technology that is compatible with both cardboard and plastic. The A305 has a compact footprint of 0.85m2 and is equipped with a revolutionary double-cycling cylinder and an automated bale-out mechanism.

  • Bale 100kg cardboard and 170kg plastic
  • Double-acting cylinder with ECODrive
  • Deep chamber for larger materials
  • Automatic bale-out capability
  • Super-fast pressing cycle
  • EN16500 Safety Standards
pneumatic-air-power-badge cardboard-badge plastic-badge

The A305 is a medium-sized baler with a double-cycling cylinder and a deep chamber that is adjustable for both cardboard and plastic and has a simple two-handed bale out mechanism.

Utilizing cutting-edge pneumatic technology, the Mil-tek A305 baler ensures highly efficient compaction with minimal energy consumption.

Operating at just 8 bars of pressure, the A305 can compress with 4 tonnes of pressing force while emitting less than 70 dB(a) of noise.

pneumatic-air-power-badge cardboard-badge plastic-badge

A305 baler for cardboard and plastic

The A305 is the third iteration of Mil-tek pneumatic balers, and it features cutting-edge pneumatic technology that uses compressed air to press and release the pressing plate through the cylinder.

A double-acting cylinder increases the speed and intensity of the pressing cycle. Patented ECO-Drive technology distributes power to the pressing plate efficiently during the downward cycle and locks the pressing plate in position to further compact the material. On release, compressed air is used to return the pressing plate.

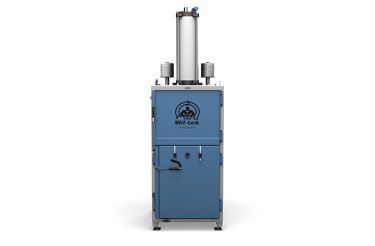

Mil-tek A305 baler

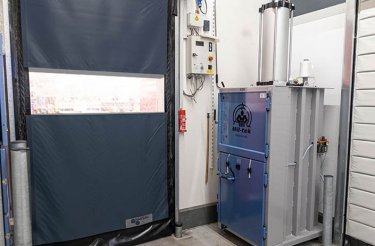

The A305 is adaptable to the scale of the workspace, fitting seamlessly into smaller spaces or connecting to larger facilities.

The A305 is capable of creating bundles of up to 100 kg of cardboard and 170 kg of plastic and is adaptable to a variety of other materials.

Automated bale-out

A double-cycling cylinder accelerates the pressing cycle and eliminates the requirement for return springs. Patented ECODrive technology distributes power to the pressing plate efficiently during the downward cycle and locks the pressing plate in position to further compact the material.

The A305 has a convenient and secure auto-bale out mechanism. In accordance with EN16500 safety standards, the operator stands to the side of the machine and releases the bale using a two-handed mechanism. With a footprint of only 0.85m², the A305 is adaptable to the majority of workplaces.

Technical specifications

Degree of compaction

85-90%

Cardboard Bale

Plastic Bale

Pressing cycle

< 100

< 175

10-20 sec.

Bale Size

Height

760-880 mm

Width

655 mm

Depth

850 mm

Banding

13 mm (#999011)

Door Opening

Height

570 mm

Width

655 mm

Depth

815 mm

Machine Size

Height

2530 mm

Width

825 mm

Depth

1034 mm

Weight

515 kg

Noise

Noise Level

< 70 db (A)

Pressure

Pressing force at 8 bars

4000 kg

Approvals

Certifications

CE, EN16500, UKCA

A305 Cardboard & Plastic Baler

Download Product Sheet

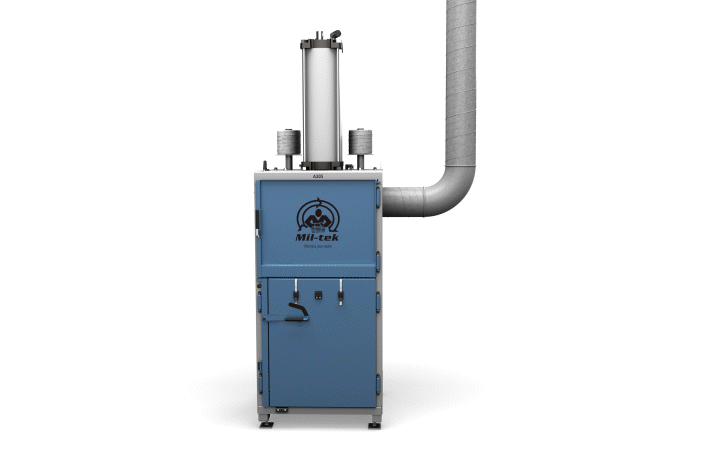

Problems with dust build-up?

This baler is available with dust extraction!
