Horizontal Balers Horizontal Balers

Horizontal Balers are large, industrial-scale hydraulic balers with upwards of 60 tonnes of pressing force.

They are designed for heavy and continuous use in locations that produce large amounts of cardboard, plastic and other packaging waste. Ideal for use in large-scale operations like logistics centres, recycling facilities, logistics and distribution centres and large supermarkets.

cardboard-badge plastic-badge hydraulic-badge

Handle heavy waste volumes efficiently

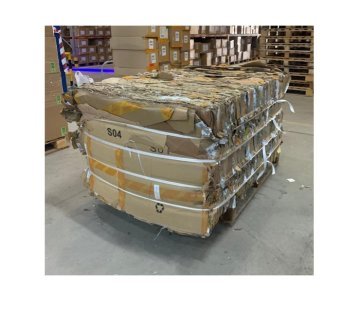

Bales produced from horizontal balers can be upwards of 550kg in weight depending on the material used and the material throughput. The mill-size bales are easily tied, followed by an automated bale-ejection process.

cardboard-badge plastic-badge hydraulic-badge

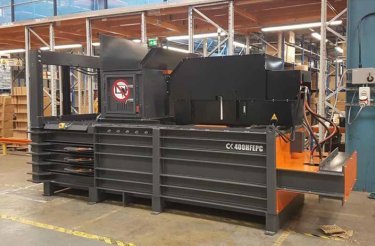

CK400HFEPC
SEMI-AUTOMATIC BALER

The CK400HFEPC is an ideal entry level semi-automatic baler. Initially designed for cruise ships, it has now become popular with the paper industry for companies printing or processing a lot of paper. The CK400HFEPC has a small footprint which means it operates well in areas where there is limited space. It comes with a Full Eject System (HFE), a Portcullis Door (PC) for fast and easy operation. With a 7.5kW motor and 50T compaction force, the CK400HFEPC produces bales of paper up to 400kg.

Benefits:
• Very small footprint
• Full bale eject and portcullis door
• Hardox castellated floor
• Larger throughput than vertical baler

Technical specifications

Compaction Force

50 tonnes

Cardboard bale

Plastic Bale

Up to 450kg

Up to 500kg

Baler Dimensions

Height (no hopper)

2220mm

Width

1570mm

Length

4470mm

Weight

Approx 5,300kg

Feed Opening (L x W)

695mm x 1050mm

Baler Performance

Compaction Force

50 tonnes

Cycle Time

45 sec / 33 sec / 29 sec

Motor

7.5kW / 11kW / 15kW

Power Supply

3 x 415V, 50Hz

Noise Level

80dBA

Bale Specifications

Height

750mm

Width

1150mm

Length (min – max)

800mm – 1200mm

Bale Ejection System

Full Eject

Tying Direction

Horizontal

CK450HFE
SEMI-AUTOMATIC BALER

The CK450HFE has been one of the most popular CK machines in the past number of years. The CK450HFE can be found in logistic centres, warehouses and large retail shops with substantial volumes of waste. The Full Eject System (HFE) ensures fast operation, allows switching between waste streams and avoids contamination. The CK450HFE is the perfect height for hand-feeding and very suitable for dock level loading. The wide filling chamber is also very suitable for use with bin tipping equipment. The vertical tie orientation ensures bale integrity for certain materials.

Benefits:
• Full eject system for ease of use and to avoid cross-contamination
• Large feed-opening
• Strong and aggressive shear-blades will cut most materials
• Mill-size bale dimensions to optimise transport loads
• Automatic bale full system
• Cardboard, paper, soft plastics

Technical specifications

Compaction Force

50 tonnes

Cardboard Bale

Plastic Bale

Up to 450kg

Up to 500kg

Baler Dimensions

Height

2430mm

Width

1780mm

Length

6280mm

Weight

Approx 5,500kg

Feed Opening (L x W)

1400mm x 1040mm

Baler Performance

Compaction Force

50 tonnes

Cycle Time

86 sec / 60 sec / 42 sec

Motor

7.5kW / 11kW / 15kW

Power Supply

3 x 415V, 50Hz

Noise Level

80dBA

Bale Specifications

Height

750mm

Width

1150mm

Length (min – max)

950mm – 1200mm

Bale Ejection System

Full Eject

Tying Direction

Vertical

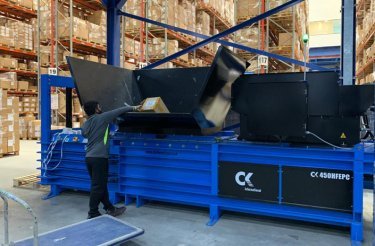

CK450HFEPC
SEMI-AUTOMATIC BALER

CK450HFEPC is an excellent solution for distribution and logistic centres, retail stores, manufacturers and various industries with substantial volumes of waste. This machine comes with a Full Eject System (HFE), a Portcullis Door (PC) and 60T compaction force. In addition, it has 4 wire horizontal tying and an 11kW motor as standard for fast cycle times and operation. The press-plate is mounted on a Hardox® Castellated floor, thereby reducing maintenance costs and ensuring long life of the machine.

Benefits:
• Full eject system for easy operation and to avoid cross-contamination
• Hardox® Castellated Floor for low maintenance and long life
• Advanced 4 wire horizontal tying system
• Hydraulic Portcullis Door
• Automatic start-up and bale full system
• Up to 500kg bales of cardboard

Technical specifications

Compaction Force

60 tonnes

Cardboard Bale

Plastic Bale

Up to 500kg

Up to 550kg

Baler Dimensions

Height (no hopper)

2190mm (to top of standard hopper)

Width

1725mm

Length

7200mm

Weight

Approx 8000kg

Feed Opening (L x W)

1,475mm x 1050mm

Baler Performance

Compaction Force

60 tonnes

Cycle Time

92 sec /60 sec /42 sec /30 sec

Motor

11kW / 15kW / 22kW

Power Supply

3 x 415V, 50Hz

Noise Level

80dBA

Bale Specifications

Height

750mm

Width

1100mm

Length (min – max)

900mm – 1300mm

Bale Ejection System

Full Eject

Tying Direction

Horizontal

Watch: Horizontal balers in work at DULSCO’s Material Recovery Facility (MRF)
