Extremely rapid pneumatic pressing force with a footprint of 1.5m². The A509 cardboard and plastic baler of the third generation combines speed and strength for heavy-duty efficiency.
The A509 is a heavy-duty compactor with a footprint of less than 1.5m² and a pressing cycle that takes less than 15 seconds.
The wide door and large pressing chamber of the A509 enable it to manage large volumes of cumbersome waste material. It is adaptable to compact plastic (300kg bales), cardboard (225kg bales), and other recyclables.
As with all pneumatic Mil-tek devices. The A509 comes standard with EN16500 features and a simple, two-handed bale-out mechanism.
The A509 baler is the third generation of Mil-tek pneumatic balers, incorporating two heavy-duty double-acting cylinders that press and release the plate using compressed air.
The A509 can connect to an existing air source because it operates on compressed air, which is an efficient power source devoid of hydraulic oil and free of contamination risk.
Carboard Bale
Plastic Bale
Pressing cycle
< 225 kg
< 300 kg
15-25 sec.
Height
760-880 mm
Width
1250 mm
Depth
835 mm
Banding
19 mm (#999021)
Height
570 mm
Width
1250 mm
Depth
800 mm
Height
2530 mm
Width
1450 mm
Depth
1040 mm
Weight
920 kg
Noise Level
< 70 db (A)
Pressing force at 8 bars
8000 kg
Certifications
CE, EN16500, UKCA

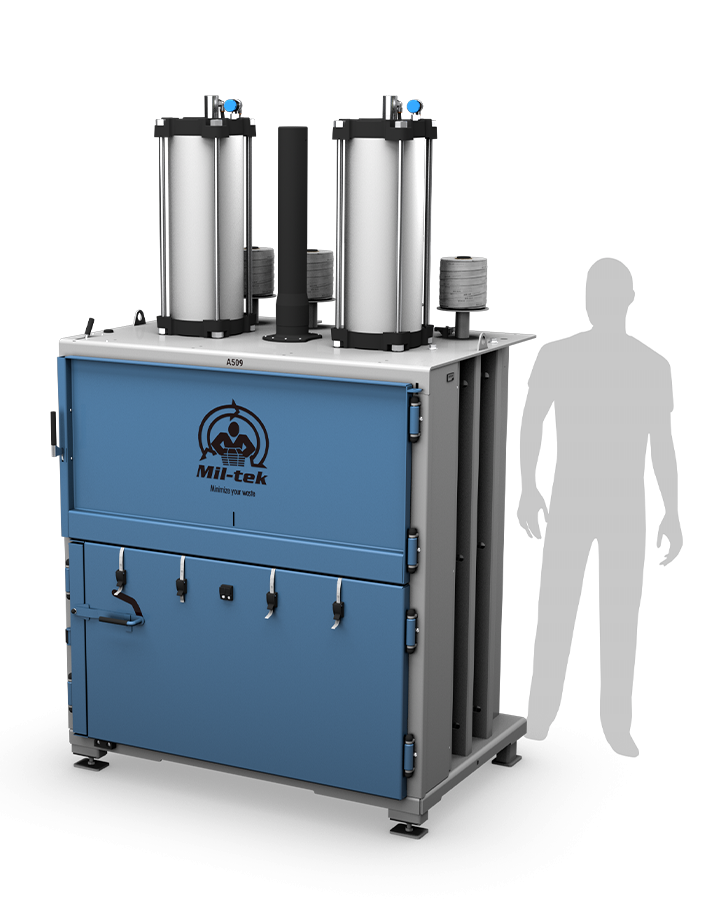

A509 Cardboard & Plastic Baler
This baler is available with dust extraction!
